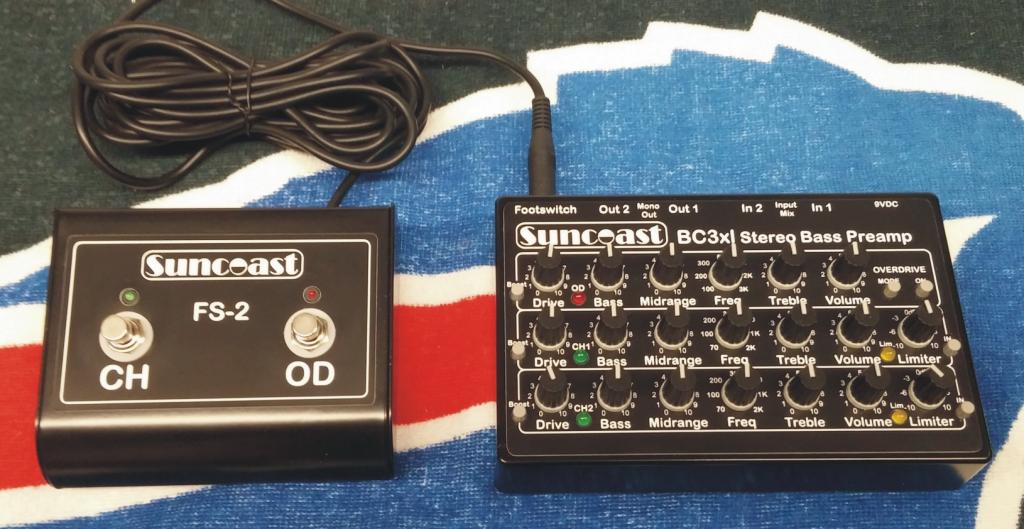

BC3xl Features:

Classic Solid-State Stereo Bass Preamp design with added Overdrive channel.

Active 3-band EQ filters on each preamp channel (+/-15dB boost/cut).

Active Bass and treble peaking tone controls fixed at 30Hz (Bass) and 5kHz (Treble).

Midrange frequency controls continuously variable (70Hz to 3kHz).

Super Boost™ Triple Overdrive Preamp mode button for monstrous, harmonic heavy bass solo's.

Active Stereo limiter for added sustain with custom tailored attack and decay curves for bass guitar.

Overdrive preamp in parallel with Channel 1 tailored for your lead split pickup.

Musical distortion characteristics designed specifically for bass.

Active Input Mix button and Mono Out button with zero insertion loss.

Input impedance - 1 meg ohm, Output impedance 1K ohm.

100% discreet analog circuit design utilizing 1% precision surface mount components.

Custom internal 280KHz switching DC power supply for +/-15VDC internal operation.

Solid, diecast aluminum enclosure with durable black satin powder coating.

Dimensions - 7.4" W x 4.7" D x 1.3" H.

Universal 9VDC, 800mA power adapter (100-240VAC 50/60Hz operation).

YouTube Video's:

Erik Arko - BC3xl Demo Video

Bass Time ! nonfish - BC3xl Review Video

Documentation:

BC3xl Owners Manual PDF

BC3xl Block Diagram PDF
