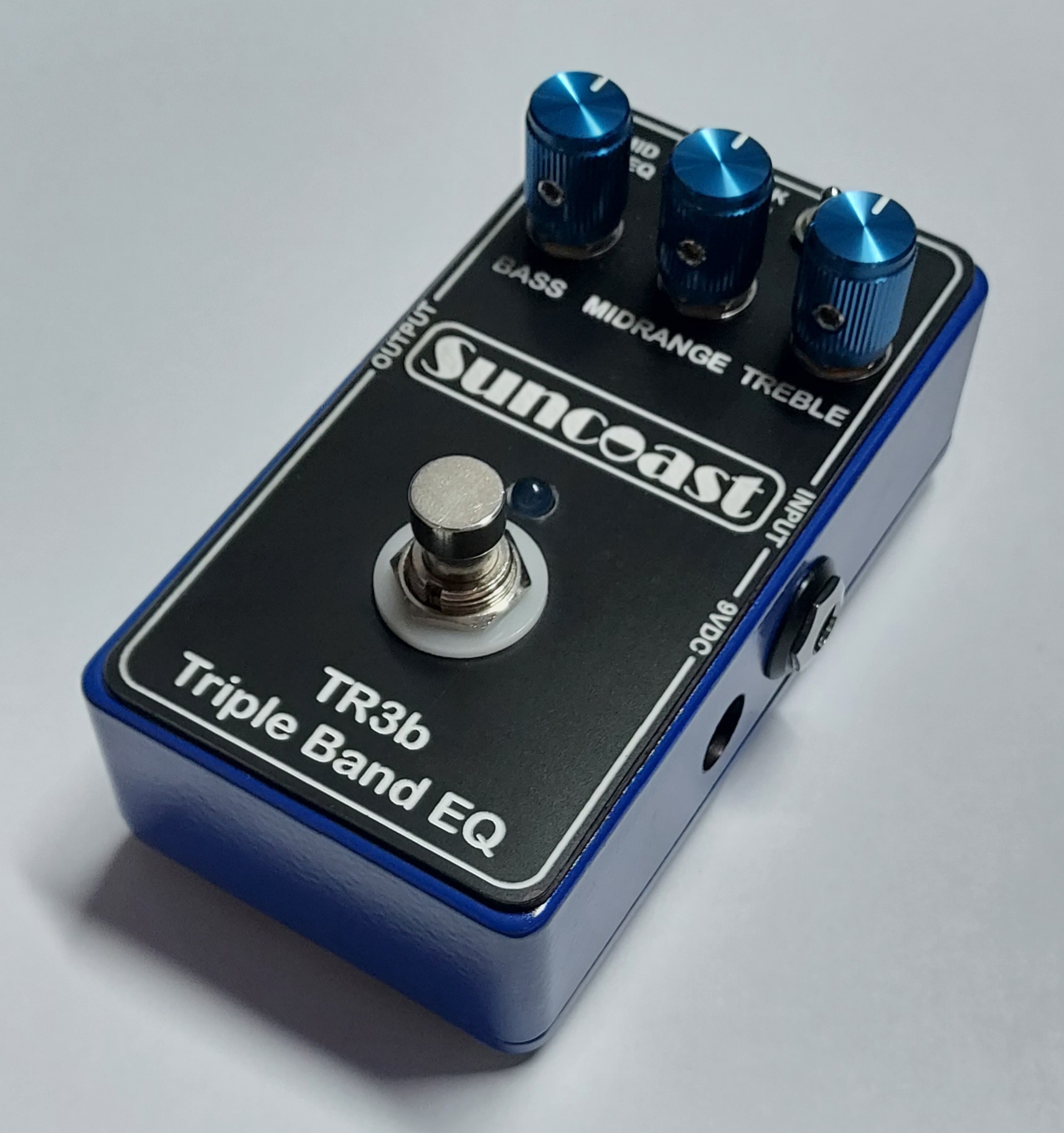

TR3b Triple Band EQ - MAP: $199

Availabe in 4 Classic Versions

TR3b - Pearce BC1 (Bass EQ) Standard Version

TR3b - Pearce G1c (Guitar EQ)

TR3b - Lab Series L4 (Bass EQ)

TR3b - Lab Series L5 (Guitar EQ)


TR3b Features:

3 Band Active EQ based on the Lab Series L5 and Pearce G1/BC1 Tone Stack.

Designed for Guitar, Bass and other Multi-String Instruments.

  Bass Control - 30Hz Peaking Filter with +/- 20dB of Boost/Cut.

Midrange Control - Three Selectable Center Frequencies 300Hz/600Hz/1.2KHz with +/- 20dB of Boost/Cut.

Treble Control - 4KHz Selectable Peaking/Shelving Filter with +/- 20dB of Boost/Cut.

Instrument level input with 1 Meg ohm Input Impedance, 1K ohm Output Impedance.

Solid, Diecast Aluminum Enclosure with durable Black Satin Powder Coating.

Dimensions 4.4"L x 2.4"W x 1.2"H

Power Supply - 9VDC (Center Negative) (96mA Idle).

Mike Amico - TR3b Triple Band EQ Video

On Sale Now at:
